Skenny Hardware

Klicke im Übersichtsbild auf die Bauteile, um direkt zum passenden Abschnitt zu springen.

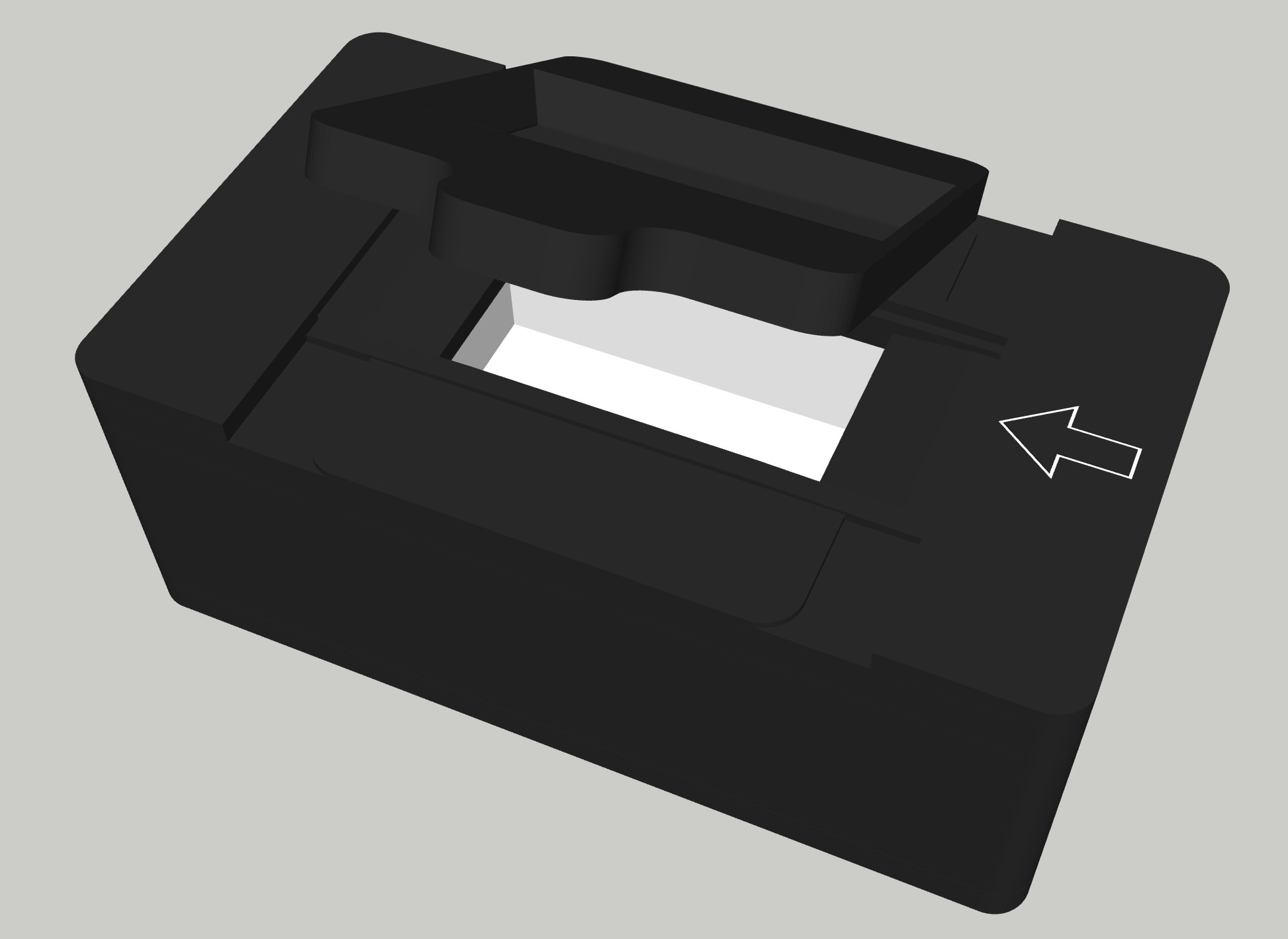

Interaktive Übersicht der Skenny-Bauteile.

A Skenny is made from 7 different plastic pieces.

Mask

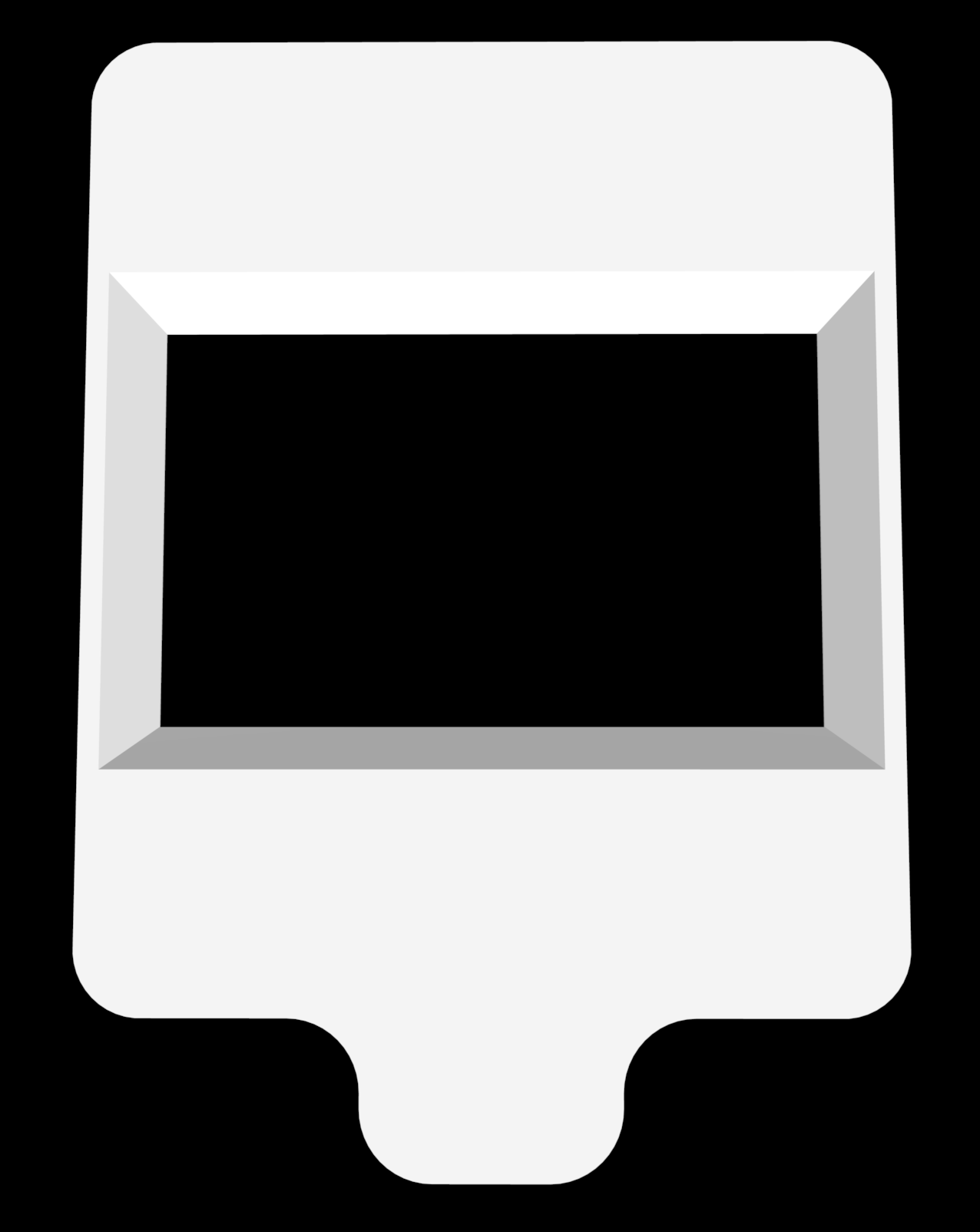

Film mask The mask is connected to the Faceplate by a hinge and can be opened and closed. When closed, the film is held firmly in place and flat to ensure the best possible photo.

Filmrail

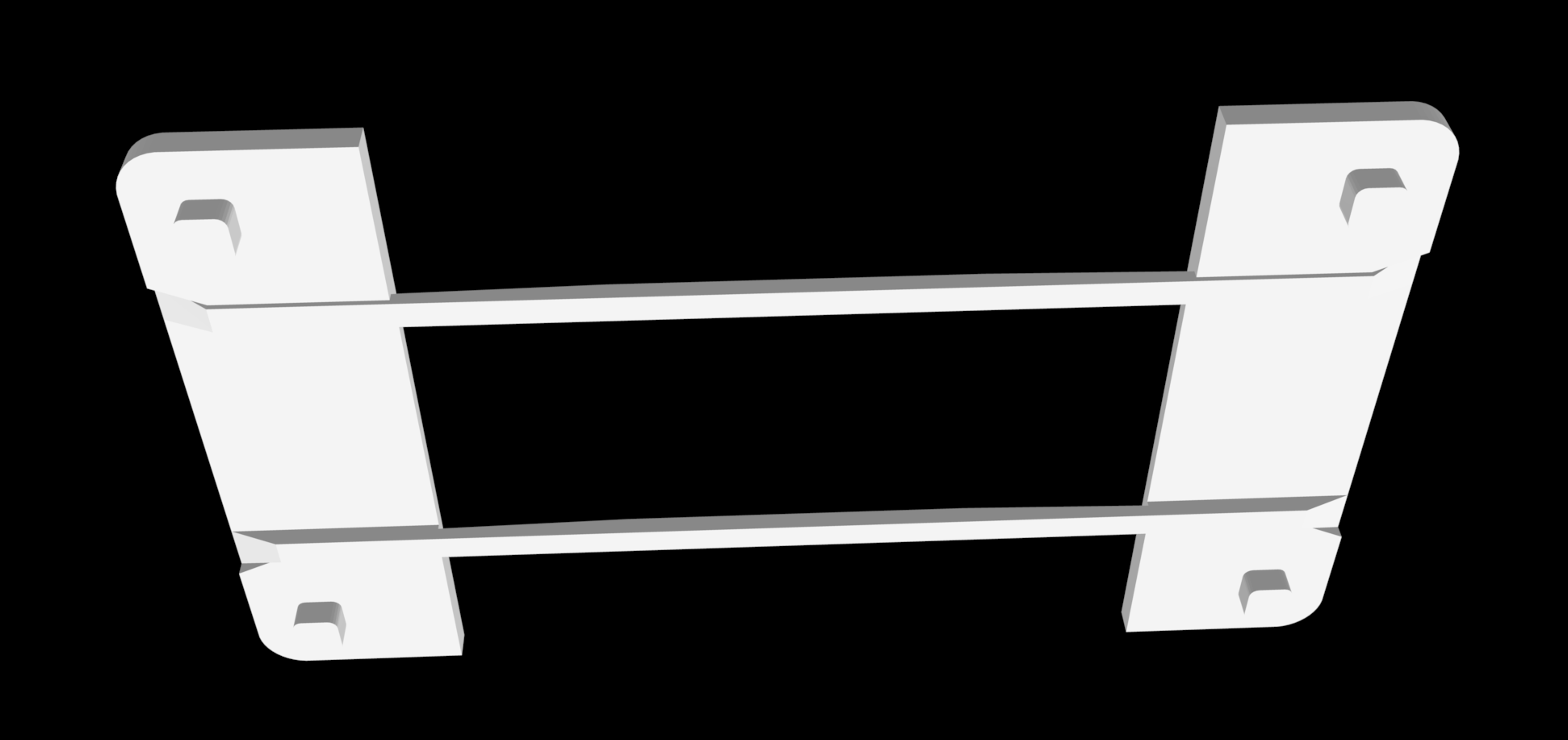

Filmrail front Filmrail back The film rail closes in conjunction with the Faceplate and the film groove and guides the film through the Skenny. The mask presses down on the film rail and holds the film in place.

Faceplate

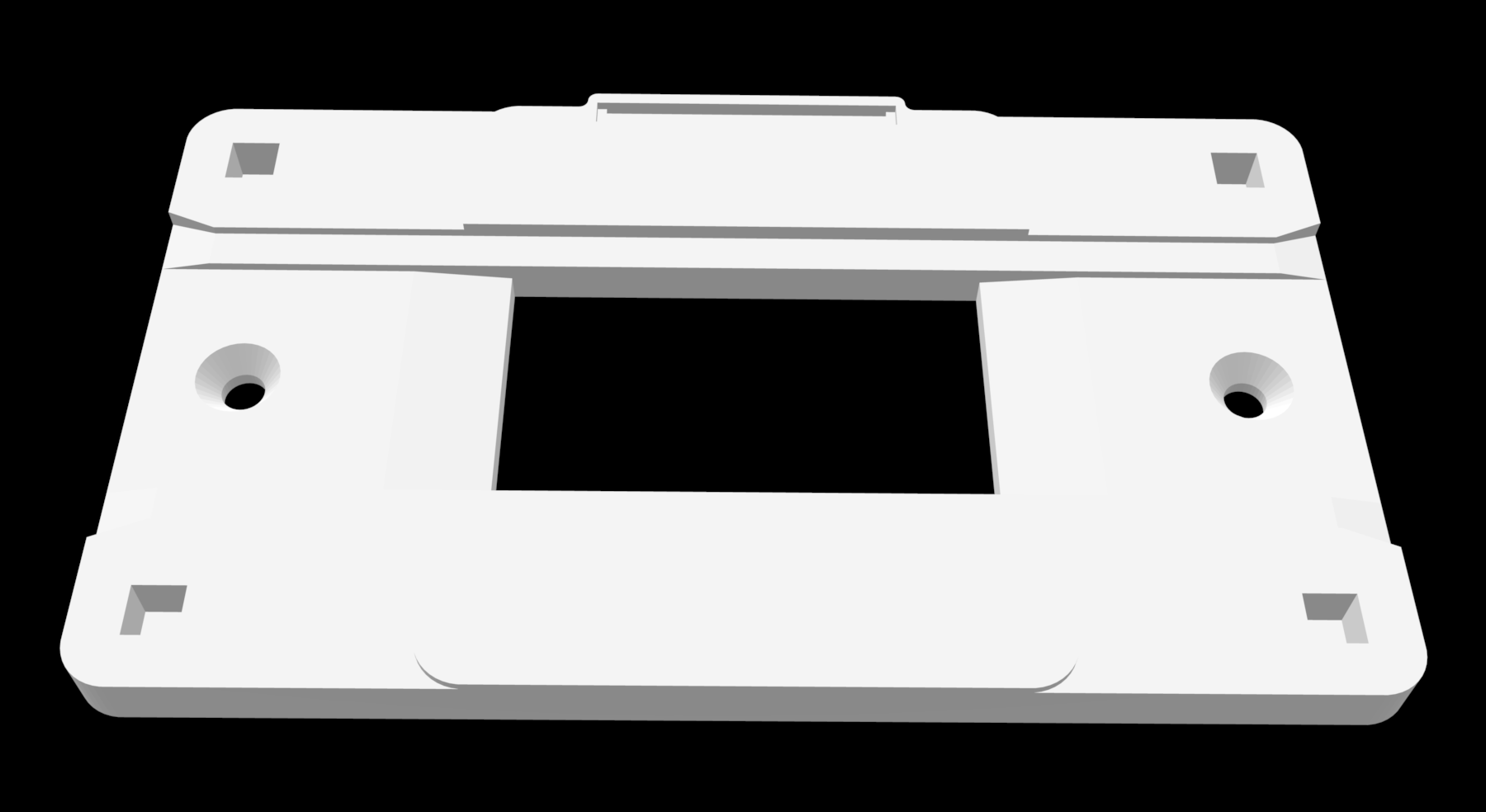

Frontside of Faceplate The front of the Faceplate has the groove for the film and the mount for the film rail and the mask. Backside of Faceplate The back of the Faceplate has the channel for the door sensor and the indentation for the LED Board

Lightsource

The lightsource sits between the Faceplate assembly and the Base. It carries the RGB LEDs that shine into the light chamber below.

Base

Base The base is the main housing of Skenny and also contains the light chamber

Light Chamber

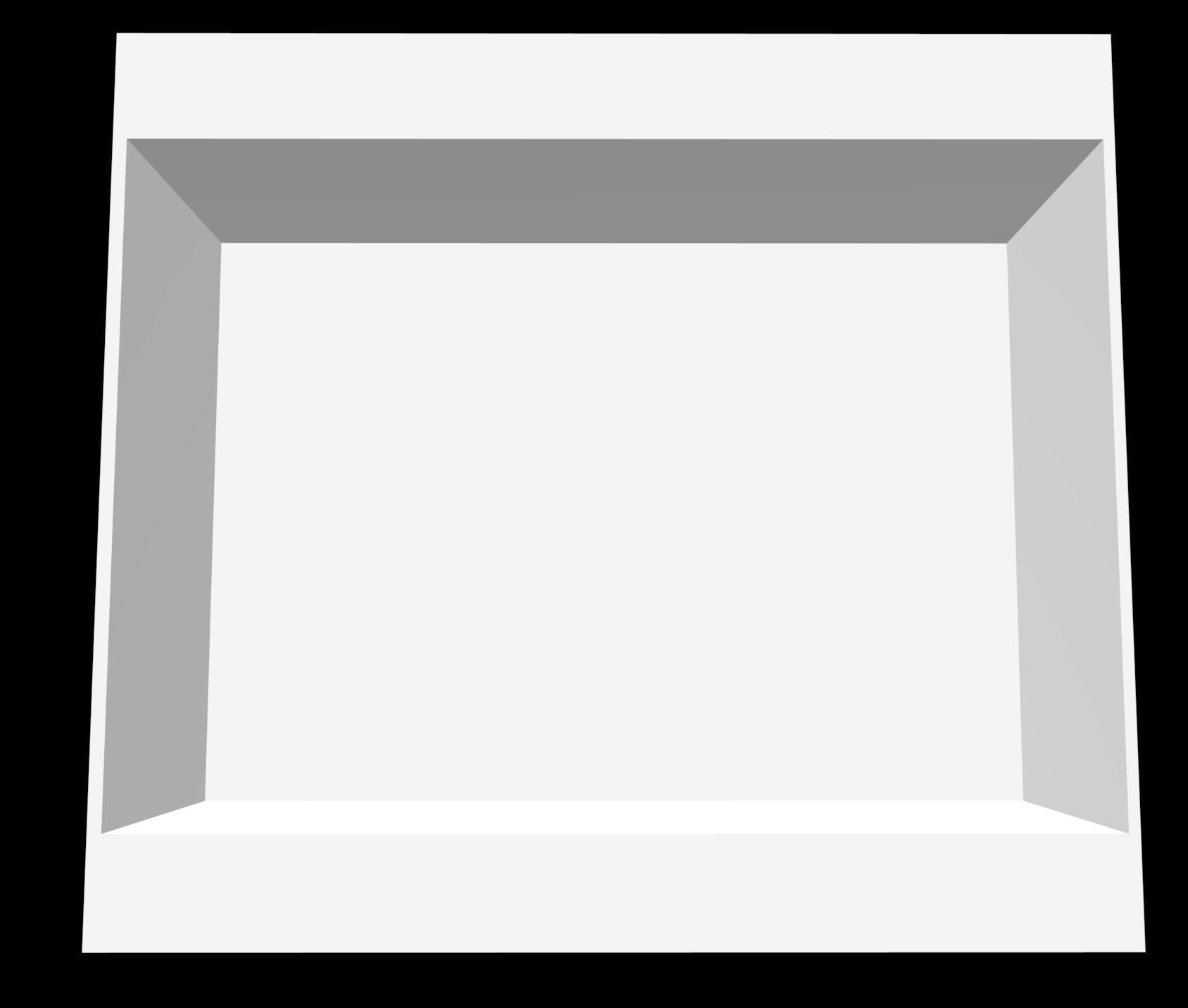

Light Chamber

The light chamber is like the heart of Skenny; it's the projection surface for the RGB LEDs.

Bottomplate

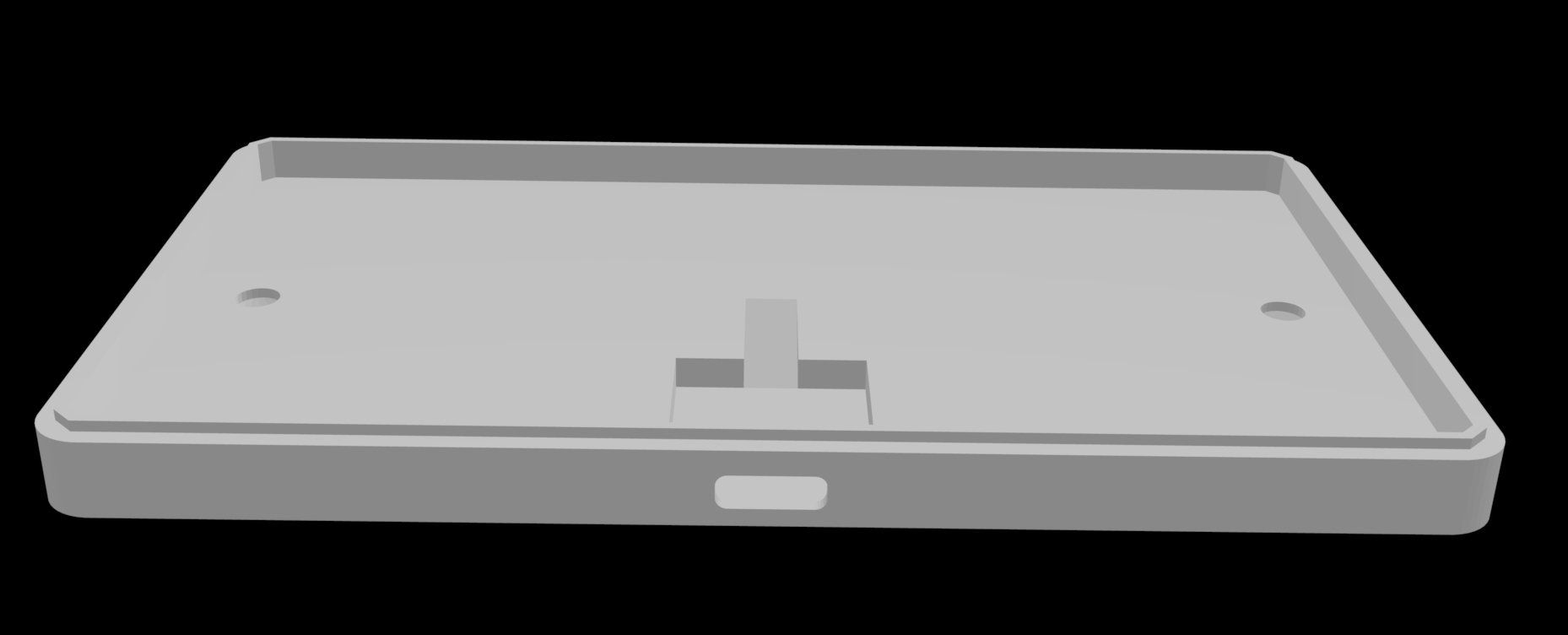

Bottomplate

The bottomplate is the bottom of Skenny and holds the mainboard as well as the USB Type-C socket.
